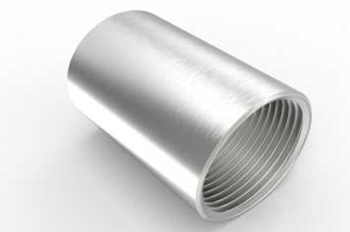

Electrical Steel Conduit Couplings

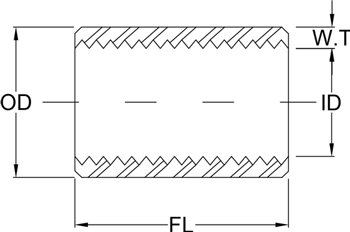

Electrical Steel Conduit Couplings The Products of Mansourian Industrial Group Drawing and Specification
Thread size P.g 11 P.g 13.5 P.g 16 P.g 21 P.g 42
Outside Dimaeter D2 (mm) 20.5 23 25 31 59
Inside Diameter (mm) 17.2 19 21.1 26.72 52.42
Wall Thickness (mm) 1.65 2 1.95 2.14 3.29
Length (mm) 30 30 36 40 60
Thread per inch 18 18 18 16 16
Thread per coupling (inch) 21.3 21.3 25.6 25.2 37.8

* Elbow thread standards according to DIN 40 430

* Raw Material dimension according to DIN 2986
