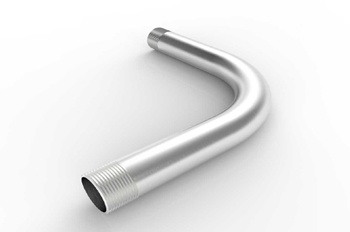

Electrical Steel Conduit 90degree Elbow

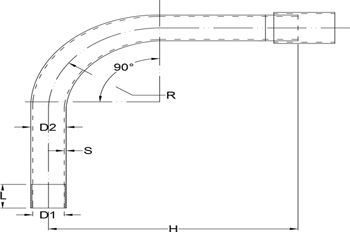

Electrical Steel Conduit 90 degree Elbow The Products of Mansourian Industrial Group Drawing and Specification
Thread size P.g 11 P.g 13.5 P.g 16 P.g 21 P.g 29 P.g 36 P.g 42 P.g 48
Outside Dimaeter D2 (mm) 18.6 20.4 22.5 28.3 37 47 54 69.3
Inside Diameter D1 (mm) 16.4 18 19.9 25.5 34.2 44 51 55.8
Wall Thikness S (mm) 1.1 1.2 1.3 1.4 1.4 1.5 1.5 1.75
Height H (mm) 120 150 160 200 220 300 350 400
Thread Length L (mm) 15 15 18 20 22 27 30 32
Radius R (mm) 55 80 100 120 155 185 200 220

* Elbow thread standards according to DIN 40 430

* Elbow dimension standard according to DIN 49 003
